Wearable Remote Control
The project was commissioned by Zoom Fins to design a wearable remote control for their new paddle board motor fin.
Project timeline - 1 week.
Commissioned on 1st July 2021
Project guid lines
- Had to be worn on the wrist
- Break and directional buttons
- 3 speed mode indicators
- A Power button
- C-type charging port
- LED indicators for battery and speed mode
- Dedicated spot for branding
finalized concept
The concept was designed to represent the nose of the paddle board.
It consists of one break and two directional buttons with automatic acceleration.
The C-type charging port sits in the front of the remote. The power button is placed on the top left profile, with an indicator led to depict the battery life of the motorized fin.
The right side profile of the body houses the toggle buttons to shift from various speed modes with designated led indicators for the user to be aware of the mode they are in.

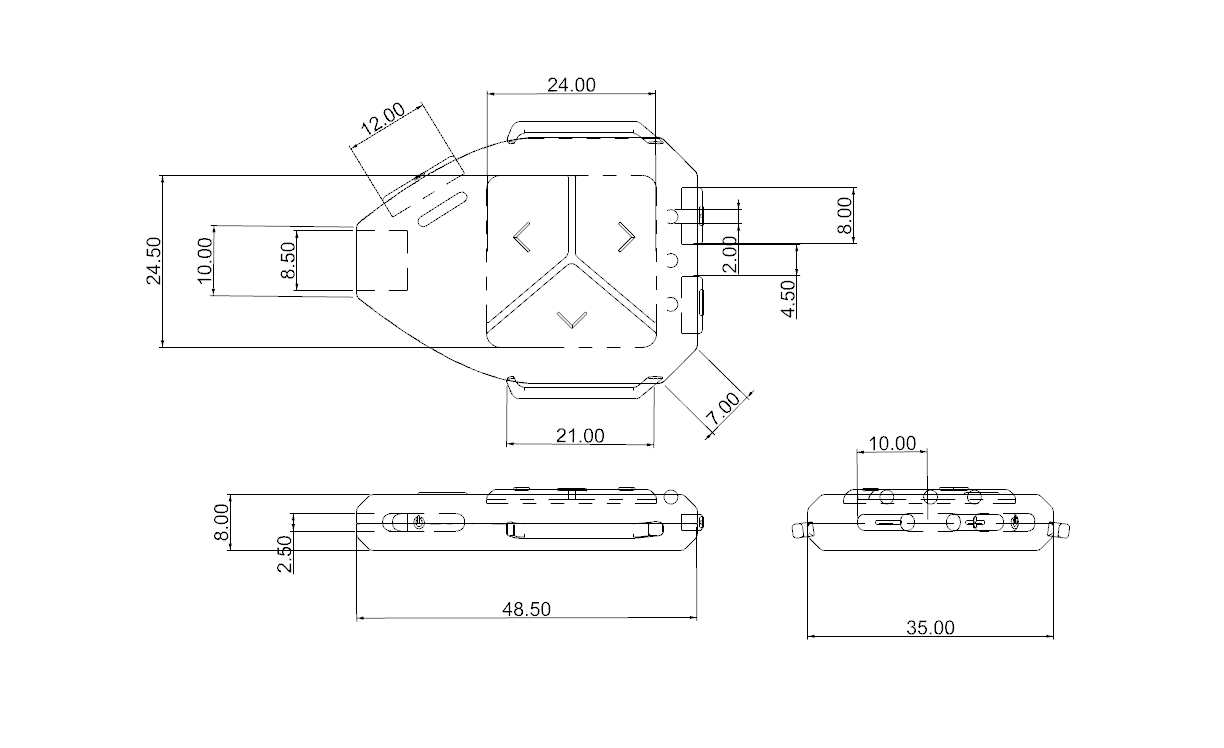

Production Drawing
